用途：我公司生產的固體發酵罐應用于醫藥、食品、釀造、生物肥料、生物飼料等各種發酵領域。
結構性能：生物固體發酵罐由傳動系統、外夾套、內筒體、加熱、滅菌、冷卻系統、噴淋裝置等幾部分組成。
機械傳動系統：設備用戶可根據產品工藝特點任意選擇攪拌轉速。
加熱、滅菌、冷卻系統：加熱冷卻可通過外夾套、灌內之外螺旋片，空心攪拌軸進行冷卻加熱，且冷卻加熱效果好，冷卻降溫時間短，高溫滅菌過程中加熱蒸汽不直接接觸發酵載體，從而使發酵物料在罐內保持合適的濕度，在罐體中部裝有溫濕度計，可隨時掌握罐內發酵無聊的溫度、濕度情況。罐體下部兩側裝有無菌空氣，空氣通過螺旋片縱向、徑向的運動軌跡使空氣均勻分布于罐體底部，使物料與無菌空氣均勻接觸，充分混合。灌頂裝有噴淋接種裝置，既可接種也可在發酵過程中及時調節固體物料濕度。
Purpose: the solid fermenter produced by our company is widely used in all kinds of fermentation fields, including medicine, food, brewing, bio-fertilizer and biological feed industry.
Structure performance: biological solid fermenter is composed by driving system, outer jacket, inner cylinder, heating, sterilization, cooling system and spraying device, etc.
Mechanical driving system: the equipment user can choose stirring speed according to process features of the products.
Heating, sterilization, cooling system: heating and cooling is done by outer jacket, external spiral piece inside the fermenter and hollow mixing shaft which gives good cooling and heating result, short cooling and temperature decreasing time. The heating steam will not contact with fermentation carrier during high-temperature sterilization process, therefore ideal humidity degree of the materials is maintained inside the fermenter. Thermo-hygrometer is installed inside the middle part of the fermenter from which the temperature and humidity of materials can be known at any time. Sterile air inlets are set at two sides on lower part of the fermenter. The air is evenly distributed at bottom part via horizontal and vertical movement by spiral piece which enables even contact and complete mixing of materials and the sterile air. Spraying and inoculation device is installed on top part which enables inoculation and timely humidity adjusting of solid materials during fermentation process.
固體發酵罐功能/Functions of solid fermenter
1、可進行固體發酵
1, Solid fermentation can be performed
2、可作固體混合機使用
2, can be used as solid mixing machine
3、能進行高溫滅菌
3, high temperature sterilization is available
4、可作為高低溫烘干機用
4, can be used as a high or low temperature dryer
5、工藝上管路上接上真泵空可作真空干燥機用
5, can be used as a vacuum dryer when connecting with vacuum in process or pipe
|
|

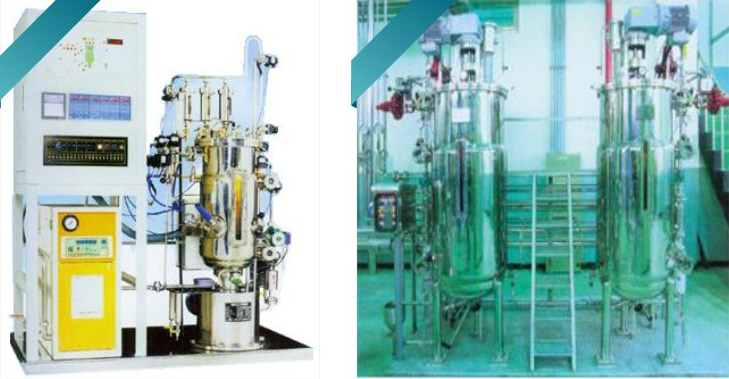

全自動控制發酵設備/Full-Automatic fermentation equipment |
|
